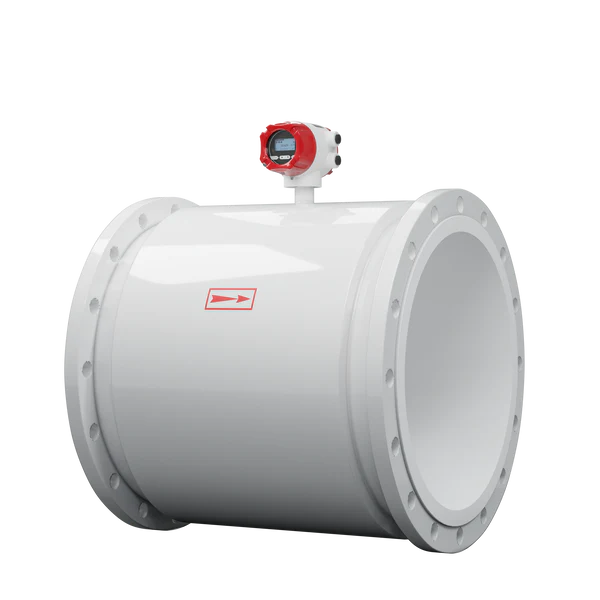

Carbon steel body magnetic flowmeter LDG
$1050.00
Introduction
Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer.
Specification
Diameter Nominal
DN15(1/2”)~DN1000(40”)
Nominal Pressure
DN15 - DN250, PN ≤1.6 MPa (232 psi)
DN300 - DN1000, PN ≤1.0 MPa (145 psi)
DN1200, PN ≤0.6 MPa (87 psi)
Higher pressure can be customized
Accuracy
±0.5% F.S. Flow speed > 1 m/s ( > 3.28 ft/s)
±0.5% F.S. ±2 mm/s Flow speed < 1 m/s ( < 3.28 ft/s)
Liner Material
Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
Electrode Material
316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium Temperature
Neoprene: -10…+60℃ (14℉~140℉)
Polyurethane: -10…+60℃ (14℉~140℉)
PTFE/FEP: -10…+120℃ (14℉~248℉)
PFA: -10…+180℃ (14℉~356℉)
Power Supply
85-245 VAC, 50/60 Hz
22-26 VDC
Ingress Protection
IP65
Product Standard
JB/T 9248-2015
